ALiner Ranger A-Frames RVs For Sale

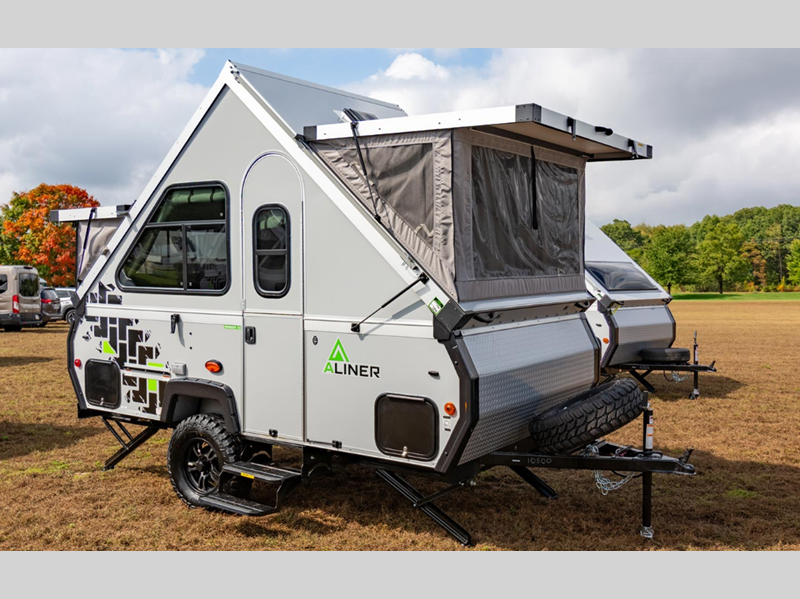

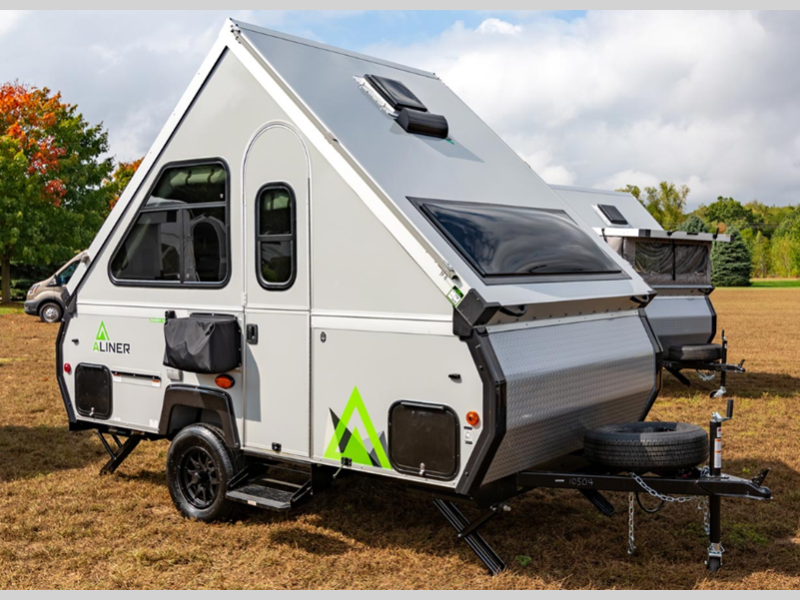

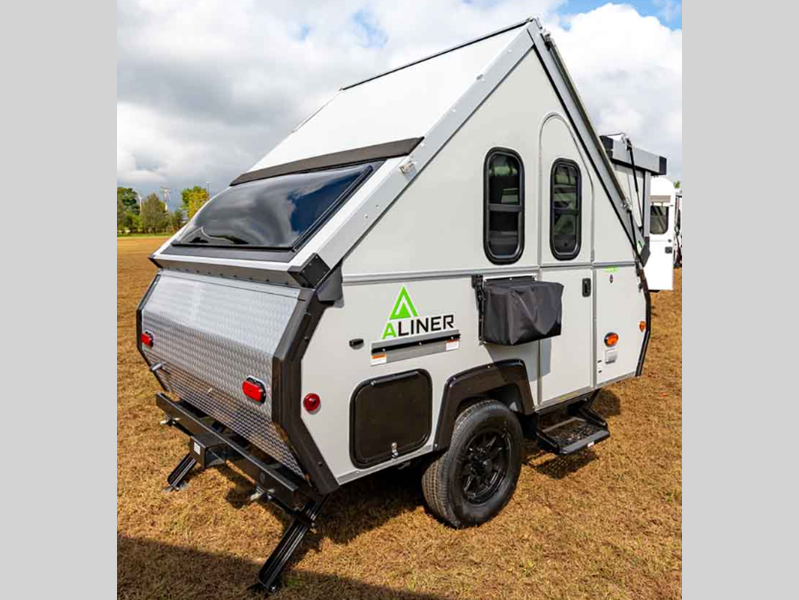

The Ranger A-frame campers by ALiner are fully featured for comfortable and easy camping! You can enjoy big adventures in these small and medium campers with either one or two adventurous people depending on the Ranger you choose.

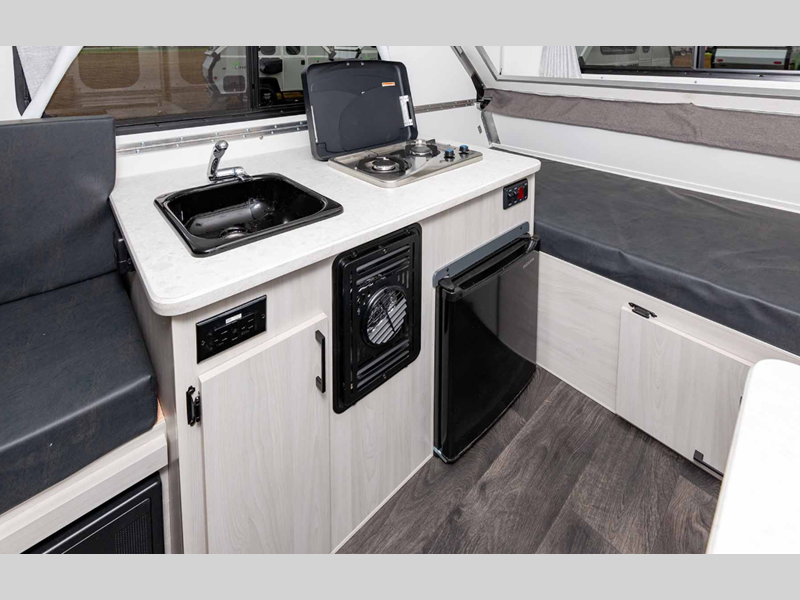

Each is built lightweight with an Azdel, thermoplastic composite interior wall and ceiling panels allowing you to tow with a smaller vehicle, and includes a 3,000 lb. axle, a black and gray exterior package, 14" tires and four stabilizer jacks. The interior provides an indoor/outdoor 12 Volt refrigerator/freezer, a two burner stove, a sink and sleeping accommodations.
Whether you like to venture far or near, there is an ALiner Ranger A-frame camper calling your name. Choose an easy to tow, setup and store Ranger today!
-

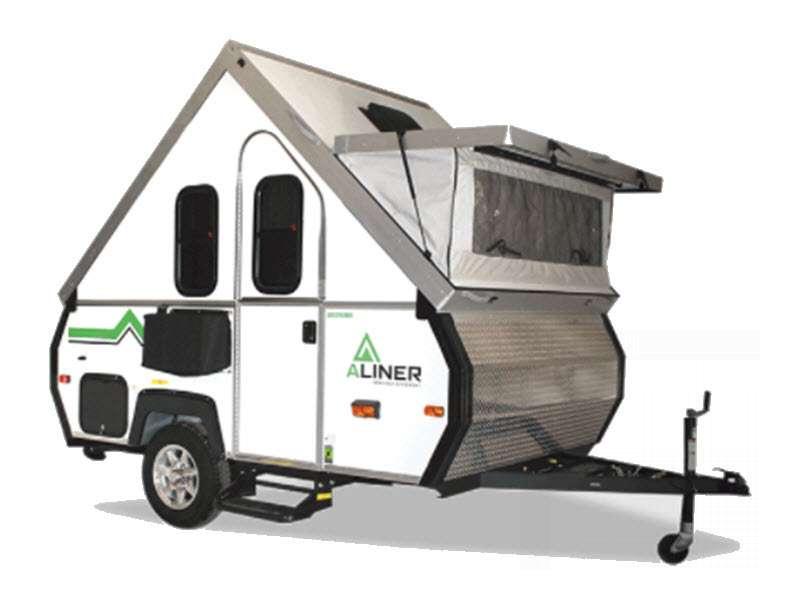

Ranger 10 Bunk

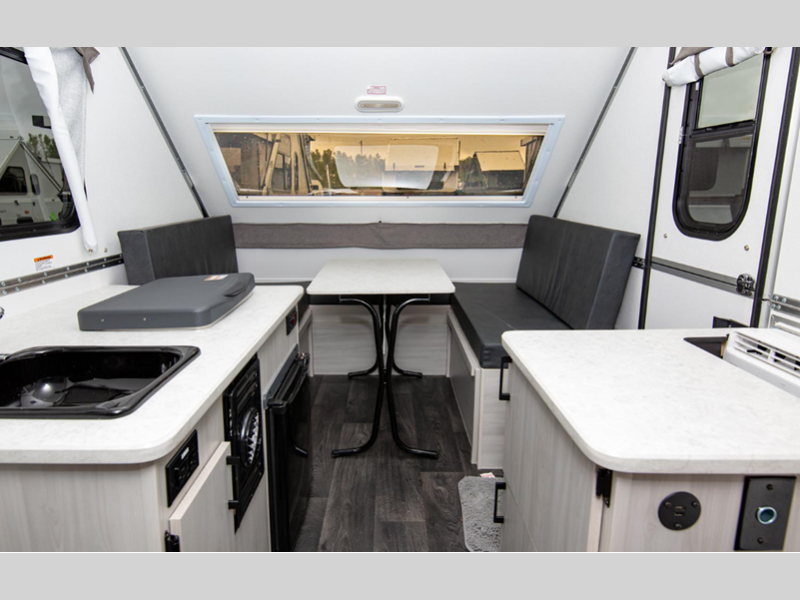

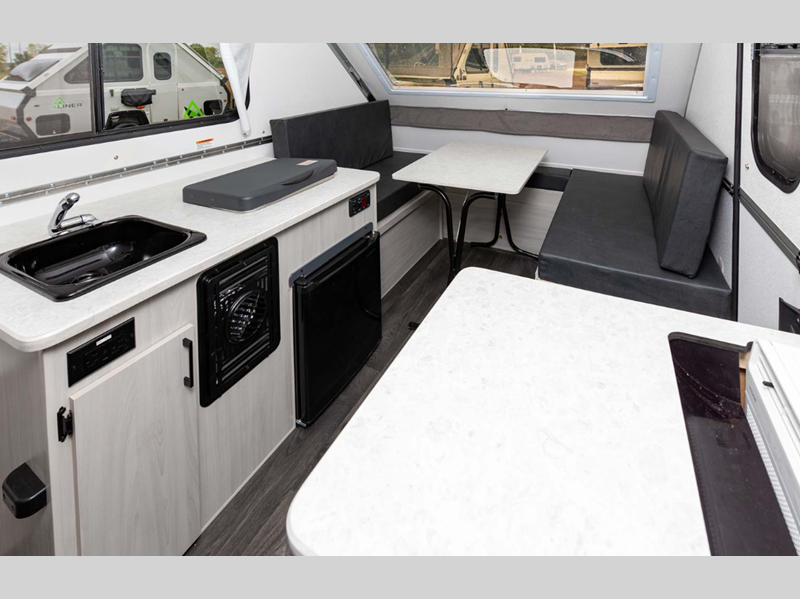

ALiner Ranger A-frame camper 10 Bunk highlights: Front Bunk Rear Dinette Outside ... more about Ranger 10 Bunk
Featured 10 Bunk
Specifications
Sleeps 2 Length 12 ft 8 in Ext Width 6 ft 6 in Ext Height 4 ft 10 in Hitch Weight 175 lbs GVWR 3000 lbs Dry Weight 1300 lbs Fresh Water Capacity 11 gals Tire Size 14" Furnace BTU 16000 btu Available Beds Twin Bunk Refrigerator Type 12 Volt Refrigerator/Freezer Cooktop Burners 2 Axle Count 1 Number of LP Tanks 2 Shower Type N/A Similar Floorplans
-

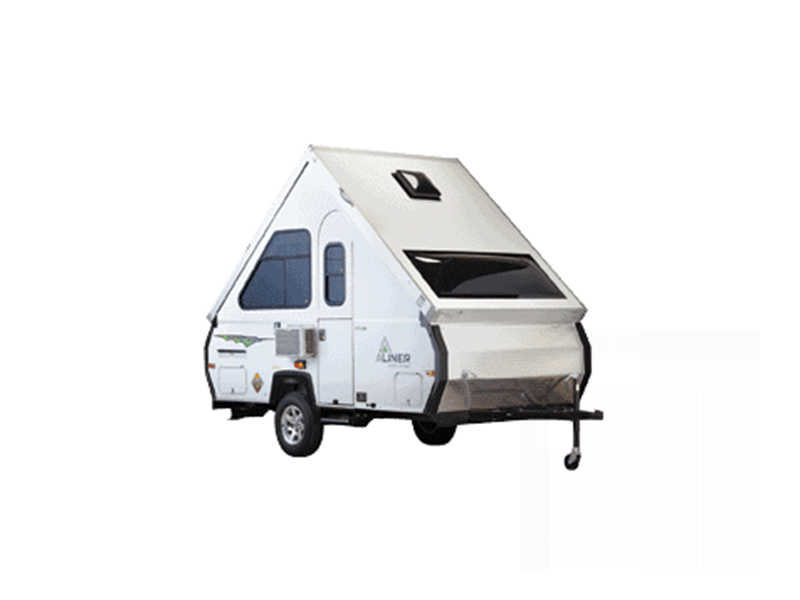

Ranger 10 Front Kitchen

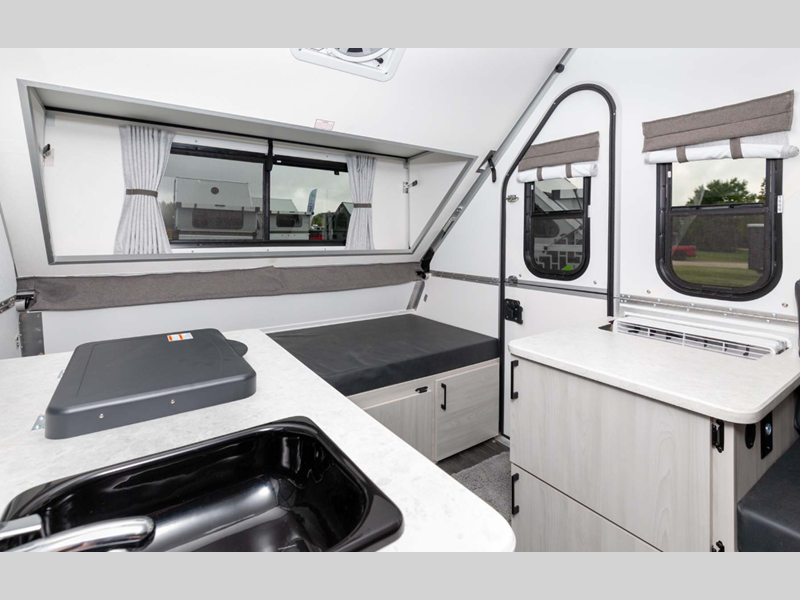

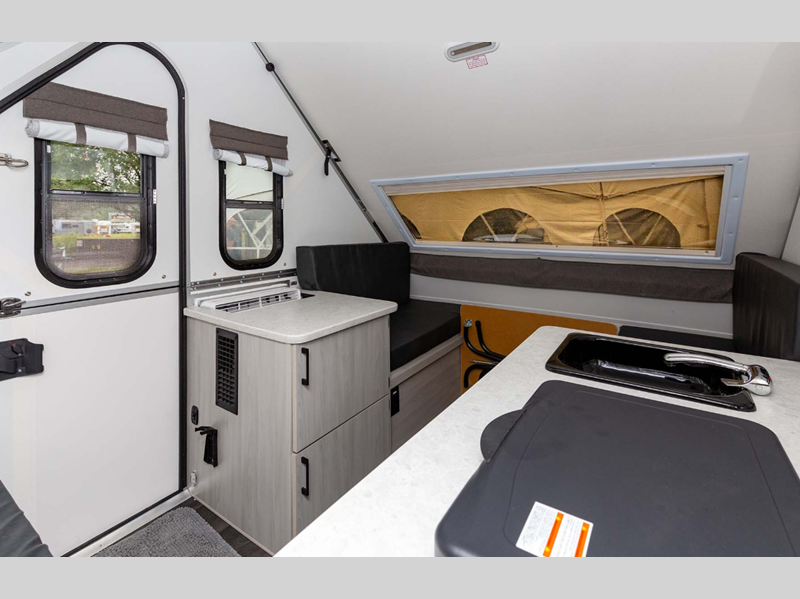

ALiner Ranger A-frame camper 10 Front Kitchen highlights: Front Kitchen Rear ... more about Ranger 10 Front Kitchen
Have a question about this floorplan? Contact Us
Specifications
Sleeps 2 Length 12 ft 8 in Ext Width 6 ft 6 in Ext Height 4 ft 10 in Hitch Weight 175 lbs GVWR 3000 lbs Dry Weight 1300 lbs Fresh Water Capacity 11 gals Tire Size 14" Furnace BTU 16000 btu Refrigerator Type 12 Volt Refrigerator/Freezer Cooktop Burners 2 Axle Count 1 Number of LP Tanks 2 Shower Type N/A Similar Floorplans
-

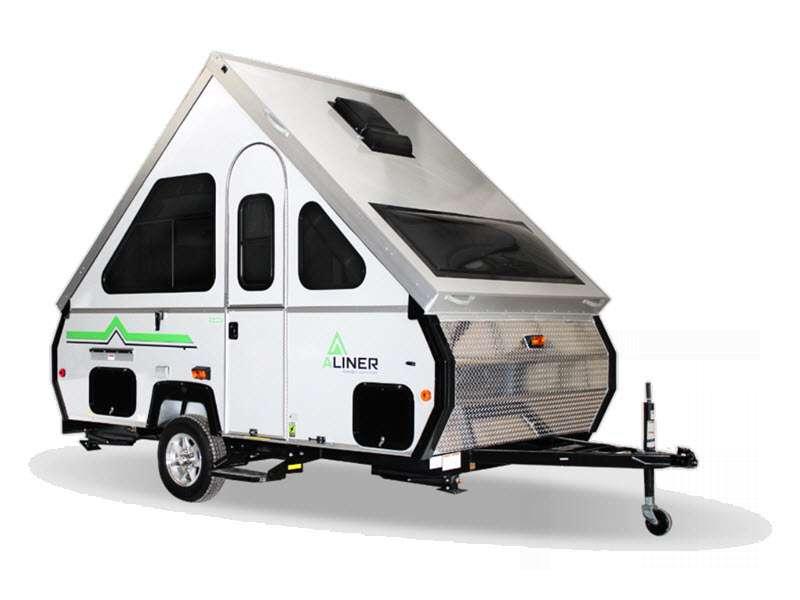

Ranger 12 Sofa Bed
ALiner Ranger A-frame camper 12 Sofa Bed highlights: Rear Sofa Bed Front Dinette ... more about Ranger 12 Sofa Bed
Have a question about this floorplan? Contact Us
Specifications
Sleeps 3 Length 15 ft Ext Width 6 ft 6 in Ext Height 4 ft 9 in Hitch Weight 150 lbs GVWR 3000 lbs Dry Weight 1450 lbs Fresh Water Capacity 11 gals Tire Size 14" Furnace BTU 16000 btu Refrigerator Type 12 Volt Refrigerator/Freezer Cooktop Burners 2 Axle Count 1 Number of LP Tanks 2 Shower Type N/A
Ranger Features:
Standard Features (2023)
Standard Equipment
- Black and Gray Exterior Package
- 11-Gallon Fresh-Water Tank
- 14" Tires
- 3000 lb. Axle
- 4 Stabilizer Jacks
- LED Running Lights
- Outside Electrical Outlet
- Water Heater
- Water Pump
- Furnace
- Indoor/Outdoor 12 Volt Refrigerator/Freezer
- Outside Shower
- Sink
- 2 Burner Stove
- 3 Interior Electrical Outlets
- Azdel Lightweight, Thermoplastic Composite Interior Wall and Ceiling Panels
- Performax 500 Premium Marine Grade Flooring
- High Density Foam, Hypoallergenic Cushions and Mattresses
- Fantastic Vent-Fan
- 35 Amp Converter

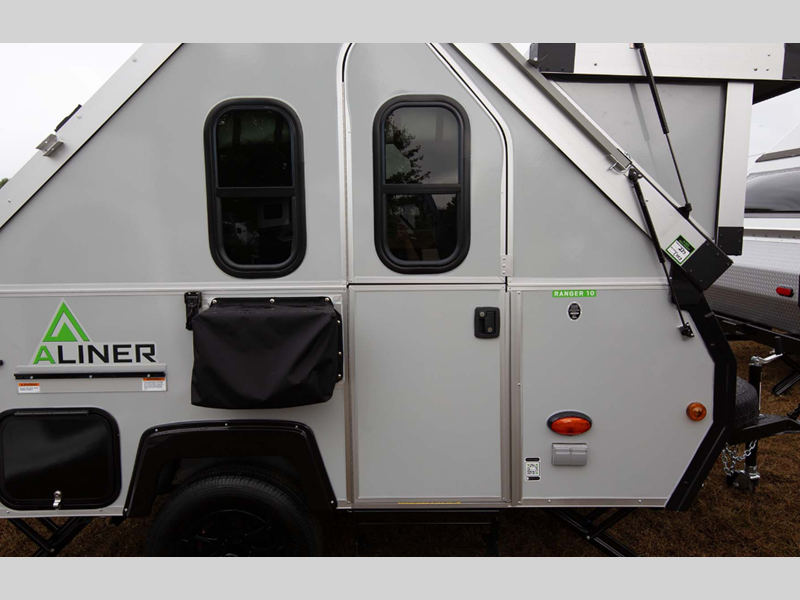

- One Exterior Bag Door (Ranger 10)
- Two Exterior Bag Doors (Ranger 12)
- Two Skylights with Night Shades (Dormer Option Eliminates Skylight with Night Shade)
- Tubular Steel Frame
- E-Coated Frame with Powder Coating on the Front Tongue and Bumper
- 10" Electric Brakes
- Vacuum Bonded Fiberglass Panels
- Diamond Plate Stone Guard
- Amber Porch Light
- Dual Propane Tanks
- Solar Port
- Anodized Aluminum Extrusion
- Aluminum Wheels
- Full Size Radial Spare Tire and Carrier
- Battery Tray
Options
- Front Soft Dormer
- Command A/C Heat Pump
- High Wind Lift Assist
- Outside Grill (Ranger 10)
- Dual Bunk Layout (Ranger 10)
- Rear Dinette Layout (Ranger 10)
- Rear Soft Dormer (Ranger 12)
- Front Hard Dormer (Ranger 12)
- Rear Hard Dormer (Ranger 12)
- Off Road Package (Ranger 12)
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
